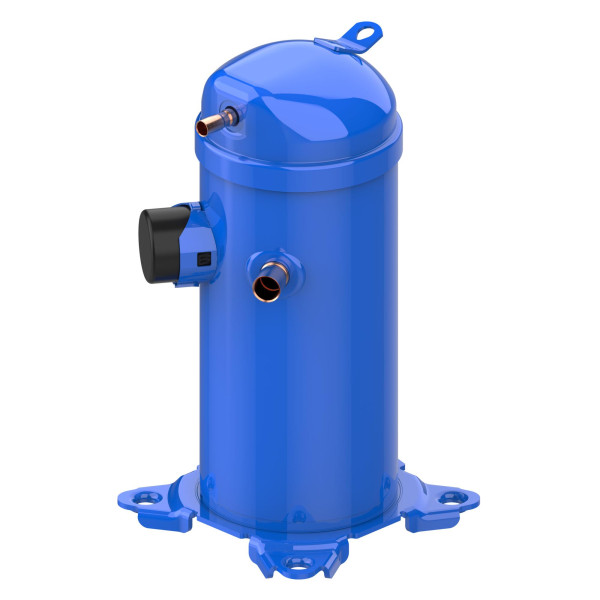

Danfoss HRP038T1LP6 3.2 tons 38,000 Btu/h R22,R407C Scroll Compressor for Air conditioning 208-230/1/60 (V/Ph/Hz) Discharge 1/2 in, Suction 3/4 in, ODF, PVE Oil 121L3353 Replaces: 120U3197, HRM038U1LP6 , ZR34K-PFV , ZR36K-PFV
Use: Scroll Compressor Replacement for Air Conditioning Units
Electrical Components: Run Capacitor 55mfd 370VAC, Start Capacitor 88-108 mfd 330VAC, Start Relay RVA 2ABKO
Danfoss H-series scroll compressor for R22/R407C/R410A is available as single compressor and can be assembled in tandem combinations on selected models
Liquid and Suction line connections that line up with those of other major scroll compressor manufacturers, Danfoss scroll compressors can be used to replace compressors made by nearly any company
Aditional Details: 1.06L PVE Oil Charge, Internal overload protector
Weight : 80.0 LBR
Model : HRP038T1LP6
UPC-EAN : 5702428208338
Scroll Compressor HRP038T1LP6 – Danfoss 121L3353
The Danfoss HRP038T1LP6 is a high-performance scroll compressor designed for R407C-based air conditioning systems. This hermetic, single-phase unit operates at 208-230V/1/60Hz and is ideal for residential and light commercial cooling applications delivering around 38,000 BTU/h. Built with robust internal protection and precise oil control, the HRP038T1LP6 ensures long-term durability and efficiency.
Key Features
- Refrigerant: R407C
- Cooling Capacity: Approx. 38,000 BTU/h (3.2 Tons)
- Power Supply: 208-230V, 1 Phase, 60Hz
- Oil Type: PVE, 1.06 L charge (160HV)
- Compressor Type: Hermetic Scroll – Fixed Speed
- Discharge Connection: 1/2 inch ODF
- Suction Connection: 3/4 inch ODF
- Motor Protection: Internal overload protector
- Certifications: UL, CE, UKCA compliant
- Max Pressure: High side 31.1 bar, Low side 26.2 bar
Applications
Recommended for residential and commercial air conditioning units with R407C refrigerant. Perfect for split systems, rooftops, and compact packaged units.
Competitor Equivalent Part Numbers
- Copeland ZR38K3E-PFV
- Emerson ZR38K5E-PFV
- Tecumseh AG158UT-038-J7
Frequently Asked Questions
- What is the cooling capacity of the HRP038T1LP6?
This unit delivers approx. 38,000 BTU/h or 3.2 tons with R407C under standard conditions. - What type of oil does it use?
It comes precharged with 1.06 L of PVE oil (160HV). - What are the electrical requirements?
It operates on 208-230V single-phase, 60 Hz power. - When should I replace this compressor?
Replace it if there's internal damage, locked rotor, winding failure, or poor compression. Confirm refrigerant and oil compatibility before installation.

Data sheet
- Product Feature
- Aditional Details: 1.06L PVE Oil Charge, Internal overload protector
- Danfoss H-series scroll compressor for R22/R407C/R410A is available as single compressor and can be assembled in tandem combinations on selected models
- Electrical Components: Run Capacitor 55mfd 370VAC, Start Capacitor 88-108 mfd 330VAC, Start Relay RVA 2ABKO
- Liquid and Suction line connections that line up with those of other major scroll compressor manufacturers, Danfoss scroll compressors can be used to replace compressors made by nearly any company
- Use: Scroll Compressor Replacement for Air Conditioning Units
- Weight
- 80.0 LBR
- Model
- HRP038T1LP6
- UPC-EAN
- 5702428208338
- Sales Unit
- EA
- Origin
- USA
- US Tariff Code
- 8414.30.8060
- Base Unit
- EA
