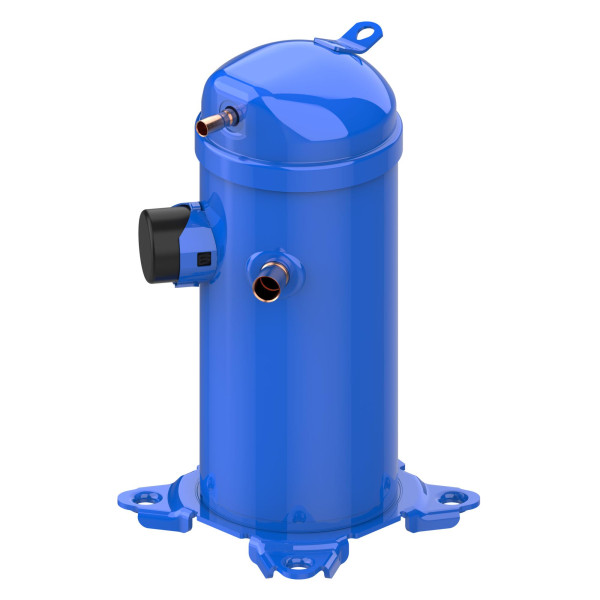

Danfoss HRP038T2LP6 3.2 tons 38,000 Btu/h R22,R407C Scroll Compressor for Air conditioning 208-230/3/60 (V/Ph/Hz) Discharge 1/2 in, Suction 3/4 in, ODF, PVE Oil 121L1086 Replaces: HRM038U2LP6

SKU
G0315.038U2
Danfoss HRP038T2LP6 3.2 tons 38,000 Btu/h R22,R407C Scroll Compressor for Air conditioning 208-230/3/60 (V/Ph/Hz) Discharge 1/2 in, Suction 3/4 in, ODF, PVE Oil 121L1086 Replaces: HRM038U2LP6
Use: Scroll Compressor Replacement for Air Conditioning Units
Danfoss H-series scroll compressor for R22/R407C/R410A is available as single compressor and can be assembled in tandem combinations on selected models
Liquid and Suction line connections that line up with those of other major scroll compressor manufacturers, Danfoss scroll compressors can be used to replace compressors made by nearly any company

Weight : 80.0 LBR
Volume : 1.18 FTQ
Model : HRP038T2LP6
UPC-EAN : 5702428207096

Scroll Compressor HRP038T2LP6 – Danfoss 121L1086

The Danfoss HRP038T2LP6 is a high-efficiency three-phase scroll compressor for R407C-based air conditioning systems. It supports both 200-220V at 50Hz and 208-230V at 60Hz, making it ideal for global residential and light commercial applications. With an output around 38,000 BTU/h, this unit is compact, reliable, and pre-charged with PVE oil for long-term performance and minimal maintenance.

Key Features

  • Refrigerant: R407C
  • Cooling Capacity: Approx. 38,000 BTU/h (3.2 Tons)
  • Power Supply: 200-220V/3/50Hz or 208-230V/3/60Hz
  • Oil Type: PVE, 1.06 L charge (160HV)
  • Compressor Type: Hermetic Scroll – Fixed Speed
  • Discharge Connection: 1/2 inch ODF
  • Suction Connection: 3/4 inch ODF
  • Motor Protection: Internal overload protector
  • Certifications: UL, CE, UKCA compliant
  • Max Pressure: High side 31.1 bar, Low side 26.2 bar

Applications

Perfect for global three-phase air conditioning units using R407C refrigerant. Ideal for rooftops, ducted split systems, and small commercial or residential packaged A/C systems.

Competitor Equivalent Part Numbers

  • Copeland ZR38K3E-TFD
  • Emerson ZR38K5E-TFD
  • Tecumseh AG158ET-038-J7

Frequently Asked Questions

  • What is the cooling capacity of the HRP038T2LP6?
    It delivers approx. 38,000 BTU/h or 3.2 tons when used with R407C.
  • What oil is used?
    The compressor is prefilled with 1.06 L of PVE oil (160HV).
  • What are the electrical specs?
    Three-phase: 200-220V at 50Hz or 208-230V at 60Hz.
  • When should it be replaced?
    Replace in case of rotor lock, internal motor failure, or consistent underperformance. Always verify oil and refrigerant compatibility.
Danfoss HRP038T2LP6 Compressor
G0315.038U2
New

Data sheet

Product Feature
  • Danfoss H-series scroll compressor for R22/R407C/R410A is available as single compressor and can be assembled in tandem combinations on selected models
  • Liquid and Suction line connections that line up with those of other major scroll compressor manufacturers, Danfoss scroll compressors can be used to replace compressors made by nearly any company
  • Use: Scroll Compressor Replacement for Air Conditioning Units
  • Weight
    80.0 LBR
    Volume
    1.18 FTQ
    Model
    HRP038T2LP6
    UPC-EAN
    5702428207096
    Sales Unit
    EA
    Origin
    USA
    US Tariff Code
    8414.30.8060
    Base Unit
    EA
    Dimensions
    10.43 x 18.7 x 10.43
