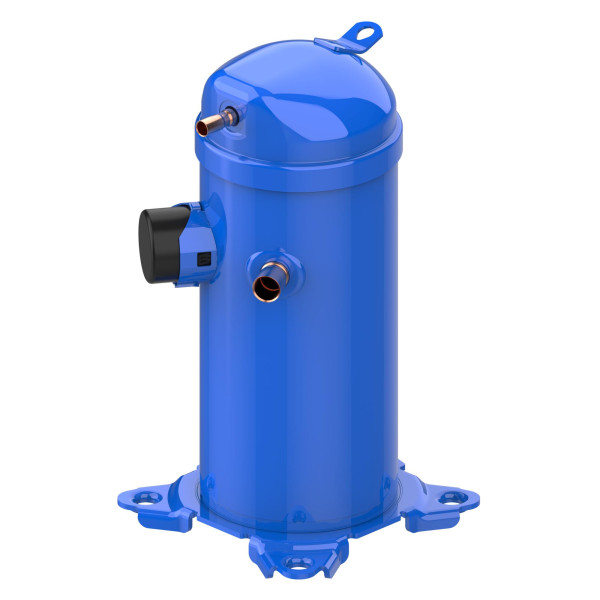

Danfoss HRP047T1LP6 3.9 tons 47,000 Btu/h R22,R407C Scroll Compressor for Air conditioning 208-230/1/60 (V/Ph/Hz) Discharge 1/2 in, Suction 3/4 in, ODF, PVE Oil 121L3347, 121L3346 Replaces HRM047U1LP6, HRM047U1LP6A, 120U3311, ZR47K-PFV
Use: Scroll Compressor Replacement for Air Conditioning Units
Electrical Components: Run Capacitor 60mfd 370VAC, Start Capacitor 88-108 mfd 250VAC, Start Relay RVA 2AB3D
Danfoss H-series scroll compressor for R22/R407C/R410A is available as single compressor and can be assembled in tandem combinations on selected models
Liquid and Suction line connections that line up with those of other major scroll compressor manufacturers, Danfoss scroll compressors can be used to replace compressors made by nearly any company
Aditional Details: 1.33L PVE Oil Charge, Internal overload protector
Weight : 80.0 LBR
Model : HRP047T1LP6
UPC-EAN : 5702428208178
Scroll Compressor HRP047T1LP6 – Danfoss 121L3347
The Danfoss HRP047T1LP6 is a powerful scroll compressor designed for use in R407C air conditioning systems. This hermetic, fixed-speed unit runs on 208-230V/1/60Hz and delivers up to 47,000 BTU/h of cooling capacity. Engineered for heavy-duty residential and light commercial use, it features increased oil volume, internal motor protection, and rugged construction for long-lasting performance.
Key Features
- Refrigerant: R407C
- Cooling Capacity: Approx. 47,000 BTU/h (3.9 Tons)
- Power Supply: 208-230V, 1 Phase, 60Hz
- Oil Type: PVE, 1.33 L charge (160HV)
- Compressor Type: Hermetic Scroll – Fixed Speed
- Discharge Connection: 1/2 inch ODF
- Suction Connection: 3/4 inch ODF
- Motor Protection: Internal overload protector
- Certifications: UL, CE, UKCA compliant
- Max Pressure: High side 31.1 bar, Low side 26.2 bar
Applications
Suitable for higher-capacity residential and light commercial air conditioning units using R407C. Ideal for rooftop systems, ducted split applications, and packaged A/C systems requiring over 3.5 tons of cooling.
Competitor Equivalent Part Numbers
- Copeland ZR47K3E-PFV
- Emerson ZR47K5E-PFV
- Tecumseh AG163UT-038-J7
Frequently Asked Questions
- What is the cooling capacity of the HRP047T1LP6?
It provides approximately 47,000 BTU/h or 3.9 tons of cooling capacity with R407C at standard conditions. - What oil does it use?
It comes precharged with 1.33 L of PVE oil (160HV). - What are the electrical requirements?
208-230V, 1 phas
Data sheet
- Product Feature
- Aditional Details: 1.33L PVE Oil Charge, Internal overload protector
- Danfoss H-series scroll compressor for R22/R407C/R410A is available as single compressor and can be assembled in tandem combinations on selected models
- Electrical Components: Run Capacitor 60mfd 370VAC, Start Capacitor 88-108 mfd 250VAC, Start Relay RVA 2AB3D
- Liquid and Suction line connections that line up with those of other major scroll compressor manufacturers, Danfoss scroll compressors can be used to replace compressors made by nearly any company
- Use: Scroll Compressor Replacement for Air Conditioning Units
- Weight
- 80.0 LBR
- Model
- HRP047T1LP6
- UPC-EAN
- 5702428208178
- Sales Unit
- EA
- Origin
- USA
- US Tariff Code
- 8414.30.8060
- Base Unit
- EA
