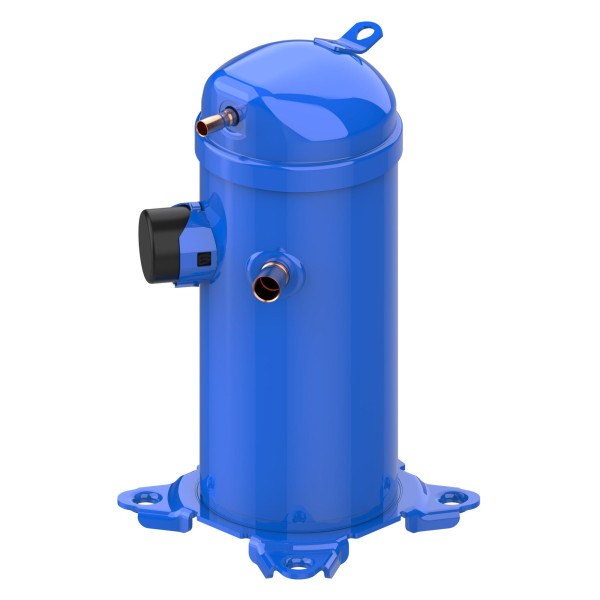

Scroll Compressor HRP047T2LP6 – Danfoss 121L1126

The Danfoss HRP047T2LP6 is a high-performance scroll compressor designed for air conditioning systems using R407C refrigerant. This three-phase compressor operates on 200-220V/3/50Hz or 208-230V/3/60Hz, delivering dependable cooling for residential and light commercial applications up to approximately 4 tons. Built with a fixed-speed hermetic scroll design, it ensures low sound levels, excellent reliability, and energy-efficient operation under demanding conditions.

Key Features

• Refrigerant: R407C
• Cooling Capacity: Approx. 48,000 BTU/h (4 Tons)
• Power Supply: 200-220V/3/50Hz or 208-230V/3/60Hz
• Oil Type: PVE, 1.33 L charge (320HV)
• Compressor Type: Hermetic Scroll – Fixed Speed
• Max Working Pressure: 31.1 bar (450 psig)
• Discharge Connection: 1/2 inch ODF
• Suction Connection: 7/8 inch ODF
• Motor Protection: Internal overload protector
• Certifications: UL, CE, UKCA compliant

Applications

Ideal for ducted split systems, packaged rooftop units, and other air conditioning solutions requiring efficient scroll compression with R407C refrigerant in three-phase systems.

Competitor Equivalent Part Numbers

• Copeland ZR47K3E-TFD
• Tecumseh AG4560E
• Emerson ZR47K5E-TFD

Frequently Asked Questions

• What is the cooling capacity of the HRP047T2LP6?
  It offers approximately 48,000 BTU/h or 4 tons of cooling, depending on system conditions.
• What type of oil does it use?
  This model is charged with 1.33 liters of PVE oil, type 320HV.
• Is it compatible with R22 or other refrigerants?
  No, this compressor is optimized for R407C only.
• When should I consider replacing this unit?
  Replacement is recommended when symptoms like low compression, locked rotor, internal electrical faults, or burnout occur. Always check for compatible voltage and refrigerant before replacement.
