Ranco ETC-211000-000 Electronic Temperature Control 2 Stages (-30 To 220f) 120/208-240v
SKU
G2204.ETC21100
Ranco ETC-211000-000 Electronic Temperature Control 2 Stages (-30 To 220f) 120/208-240v
The Ranco ETC Series Electronic Temperature Control offers a full-featured electronic replacement for electrical-mechanical temperature controls used in many commercial refrigeration applications.
With its wide temperature range, one and two stage capability, selectable heating/cooling modes and multi-voltage input, the ETC is designed to provide application flexibility.
Models available include 120/208/240V AC and 24V AC.
Anti-short cycle compressor delay for cooling applications
LCD read-out for sensor temperature, control settings, and relay status
Weight : 1.9 LBR
Volume : 0.0527728 FTQ
Model : ETC-211000-000
UPC-EAN : 662013924447
The Ranco ETC Series Electronic Temperature Control offers a full-featured electronic replacement for electrical-mechanical temperature controls used in many commercial refrigeration applications.
With its wide temperature range, one and two stage capability, selectable heating/cooling modes and multi-voltage input, the ETC is designed to provide application flexibility.
Models available include 120/208/240V AC and 24V AC.
Anti-short cycle compressor delay for cooling applications
LCD read-out for sensor temperature, control settings, and relay status
Weight : 1.9 LBR
Volume : 0.0527728 FTQ
Model : ETC-211000-000
UPC-EAN : 662013924447
ETC-211000-000
ETC Series Electronic Controls
The Rancoreg; ETC Series Electronic Temperature Control offers a full-featured electronic replacement for electrical-mechanical temperature controls used in many commercial refrigeration applications. With its wide temperature range, one and two stage capability, selectable heating/cooling modes and multi-voltage input, the ETC is designed to provide application flexibility. Models available include 120/208/240V AC and 24V AC.
Features and Benefits
- Anti-short cycle compressor delay for cooling applications
- Wide temperature range (-30F to 220F) (-34.4C to 104.4C)
- Wide differential adjustment (1F to 30F) (-17C to -1C)

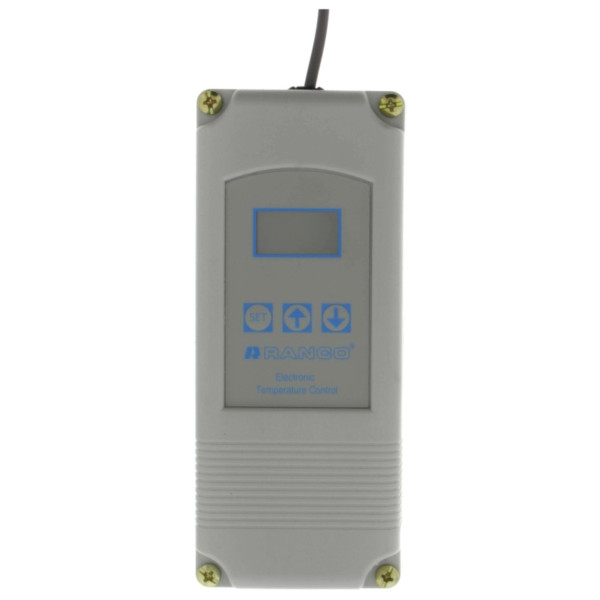

- LCD read-out for sensor temperature, control settings, and relay status
- High Amp output relay (FLA 16 Amps @ 120V AC and 8 Amps @ 208/240V AC) single stage
- EEPROM memory retains control settings during power outages
- Keypad lockout to prevent end-user alteration of settings

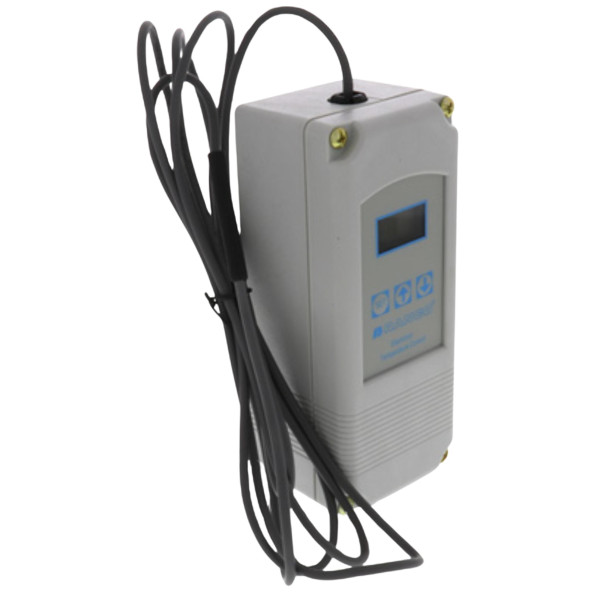

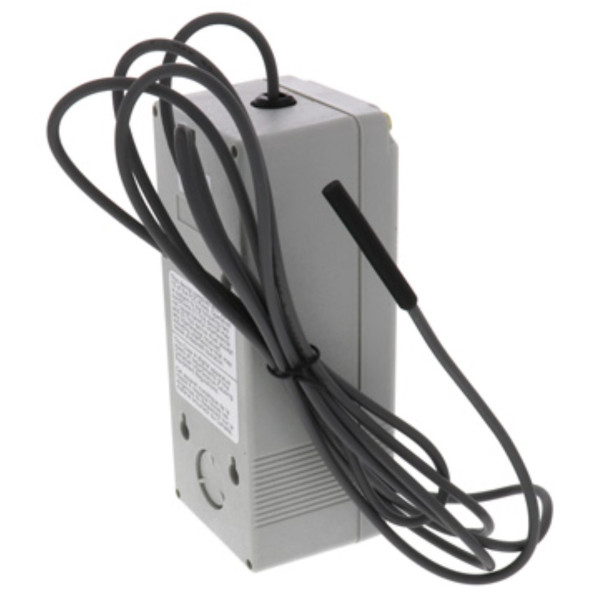

- 8 foot lead with sensor is extendable up to 400 feet using 18 or 22-gauge thermostat wire
- Easy 4-step set-up
- Heavy-duty relay is 1 HP rated
- Selectable deg;F or deg;C heating/cooling modes
- Single and two stage models
- NEMA 1 case and cover
- NEMA 4X models available
- White backlight on display
- Sensor rated IP67 for dust and water (lt;1m) resistance
G2204.ETC21100
New
Data sheet
- Product Feature
- Anti-short cycle compressor delay for cooling applications
- LCD read-out for sensor temperature, control settings, and relay status
- Models available include 120/208/240V AC and 24V AC.
- The Ranco ETC Series Electronic Temperature Control offers a full-featured electronic replacement for electrical-mechanical temperature controls used in many commercial refrigeration applications.
- With its wide temperature range, one and two stage capability, selectable heating/cooling modes and multi-voltage input, the ETC is designed to provide application flexibility.
- Weight
- 1.9 LBR
- Volume
- 0.0527728 FTQ
- Model
- ETC-211000-000
- UPC-EAN
- 662013924447
- Sales Unit
- EA
- Origin
- Mexico
- US Tariff Code
- 9032.10.0090
- Base Unit
- EA
- Dimensions
- 7.0 x 5.0 x 9.0
