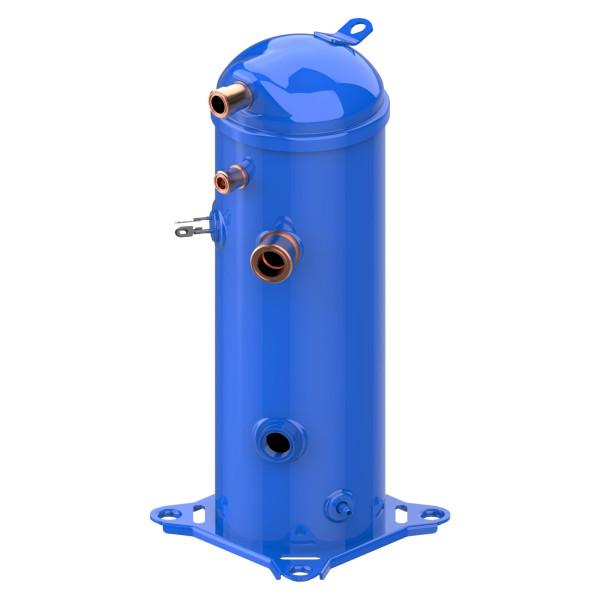

Danfoss LLZ024T2LQ9C 8 HP LBP Refrigeration Scroll Compressor 208-230/3/60 (V/Ph/Hz) R404A, R507, R452A, R448A, R449A, Rotolock Connections, 121L9550, 121L9551,121L9507, 121L9506, 121L9059
SKU
G0315.LLZ024T2
Danfoss LLZ024T2LQ9C 8 HP LBP Refrigeration Scroll Compressor 208-230/3/60 (V/Ph/Hz) R404A, R507, R452A, R448A, R449A, Rotolock Connections, 121L9550, 121L9551,121L9507, 121L9506, 121L9059
Use: Designed for Commercial Refrigeration Applications
Internal Overload Protector. Precharged 215PZ POE Oil. Screw connectors 10-32 UNF x 9.5
LLZ scroll compressors come equipped with a threaded oil sight glass with 1-1/8in 18 UNEF connection
The oil fill and drain connection and gauge port is a 1/4in male flare connector incorporating a schrader valve
Multiple Refrigerant Applications. Replaces various models 121L9507, 121L9506
Weight : 106.69 LBR
Volume : 11.45 FTQ
Model : 121L9551
UPC-EAN :
Use: Designed for Commercial Refrigeration Applications
Internal Overload Protector. Precharged 215PZ POE Oil. Screw connectors 10-32 UNF x 9.5
LLZ scroll compressors come equipped with a threaded oil sight glass with 1-1/8in 18 UNEF connection
The oil fill and drain connection and gauge port is a 1/4in male flare connector incorporating a schrader valve
Multiple Refrigerant Applications. Replaces various models 121L9507, 121L9506
Weight : 106.69 LBR
Volume : 11.45 FTQ
Model : 121L9551
UPC-EAN :
G0315.LLZ024T2
New

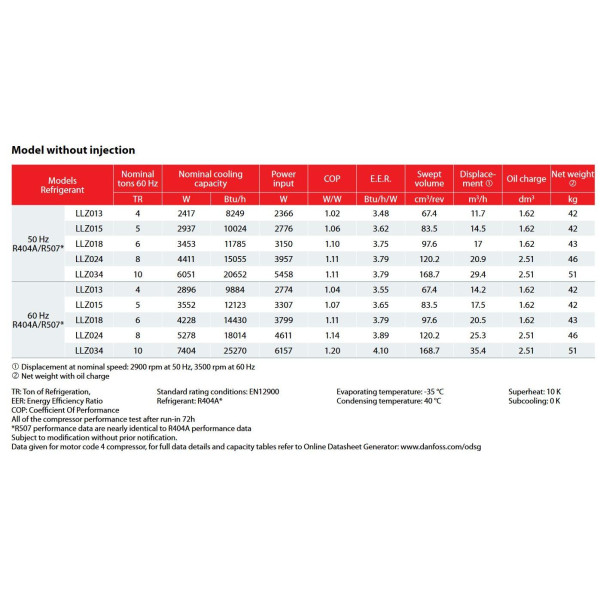

Data sheet
- Product Characteristic
- Use: Designed for Commercial Refrigeration Applications
Internal Overload Protector. Precharged 215PZ POE Oil. Screw connectors 10-32 UNF x 9.5
LLZ scroll compressors come equipped with a threaded oil sight glass with 1-1/8in 18 UNEF connection
The oil fill and drain connection and gauge port is a 1/4in male flare connector incorporating a schrader valve
Multiple Refrigerant Applications. Replaces various models 121L9507, 121L9506 - Volume
- 11.45 FTQ
- Model
- 121L9551
- Sales Unit
- EA
- Origin
- China
- US Tariff Code
- 8414.30.4070
- Base Unit
- EA
- Dimensions
- 22 x 29 x 31
Specific References
- UPC
- MPN
- 121L9551
