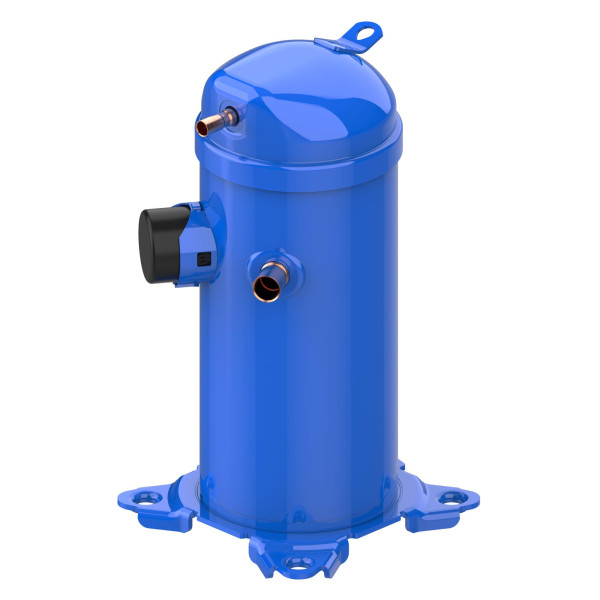

Scroll Compressor HRP054T1LP6 – Danfoss 121L3349

The Danfoss HRP054T1LP6 is a heavy-duty scroll compressor built for R407C air conditioning systems. Operating on a 208-230V/1/60Hz single-phase supply, this hermetic unit is designed for demanding residential and light commercial applications. With approximately 54,000 BTU/h cooling capacity, it offers powerful performance, internal motor protection, and high oil volume for superior system reliability.

Key Features

• Refrigerant: R407C
• Cooling Capacity: Approx. 54,000 BTU/h (4.5 Tons)
• Power Supply: 208-230V, 1 Phase, 60Hz
• Oil Type: PVE, 1.57 L charge (160HV)
• Compressor Type: Hermetic Scroll – Fixed Speed
• Discharge Connection: 1/2 inch ODF
• Suction Connection: 7/8 inch ODF
• Motor Protection: Internal overload protector
• Certifications: UL, CE, UKCA compliant
• Max Pressure: High side 31.1 bar, Low side 26.2 bar

Applications

Ideal for residential and commercial A/C units requiring high-capacity cooling with R407C. Commonly used in large split systems, rooftop units, and packaged equipment.

Competitor Equivalent Part Numbers

• Copeland ZR54K3E-PFV
• Emerson ZR54K5E-PFV
• Tecumseh AG166UT-038-J7

Frequently Asked Questions

• What is the cooling capacity of the HRP054T1LP6?
  Approximately 54,000 BTU/h or 4.5 tons with R407C under typical conditions.
• What oil is used?
  Precharged with 1.57 L of PVE oil (160HV).
• What are the power requirements?
  208-230V, 1 Phase, 60 Hz.
• When should I replace this compressor?
  Replace when signs of internal failure, locked rotor, loss of compression, or winding faults appear. Always verify oil and refrigerant compatibility.
