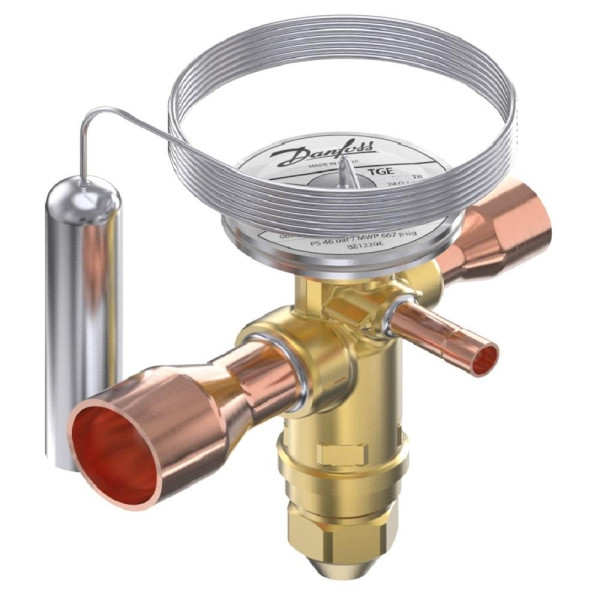

Danfoss 067N9411 15TR Thermostatic expansion valve, TGE, R22,R407C, 5/8x1 1/8 in Solder, ODF, 1/4 in Externally equalized, Bi-flow, -22 to 60 F

Tags TXV Expansion element orifice refrigeration air conditioning

Danfoss 067N9411 15TR Thermostatic expansion valve, TGE, R22,R407C, 5/8x1 1/8 in Solder, ODF, 1/4 in Externally equalized, Bi-flow, -22 to 60 F
Applications: Water Chillers. Bus A/C. Rooftop Units. Heat Pumps. Refrigerated Containers. Other A/C and Refrigeration Systems
Features: Balance port design. Biflow with expansion in both directions. Low hysteresis. Long lifetime for heat pump applications. Laser welded, stainless steel power element, capillary tube, and bulb
Straightway flow. Adjustable superheat setting. UL Certified
Maximum Operating Temperature +300F
Replaces: EBSVE 15, OVE 15, HFES-15H, TRAE-15H, 067N9411

Weight : 1.7 LBR
Volume : 0.04196506 FTQ
Model : 067N9411
UPC-EAN : 5702428482400

Reference G067N9411

Condition New

Data sheet

Product Characteristic: Applications: Water Chillers. Bus A/C. Rooftop Units. Heat Pumps. Refrigerated Containers. Other A/C and Refrigeration Systems
Features: Balance port design. Biflow with expansion in both directions. Low hysteresis. Long lifetime for heat pump applications. Laser welded, stainless steel power element, capillary tube, and bulb
Straightway flow. Adjustable superheat setting. UL Certified
Maximum Operating Temperature +300F

Replaces: EBSVE 15, OVE 15, HFES-15H, TRAE-15H, 067N9411
Model: 067N9411
UPC-EAN: 5702428482400
Sales Unit: EA
Origin: China
US Tariff Code: 8481.80.9050
Base Unit: EA
Dimensions: 4.25 x 3.25 x 5.25
