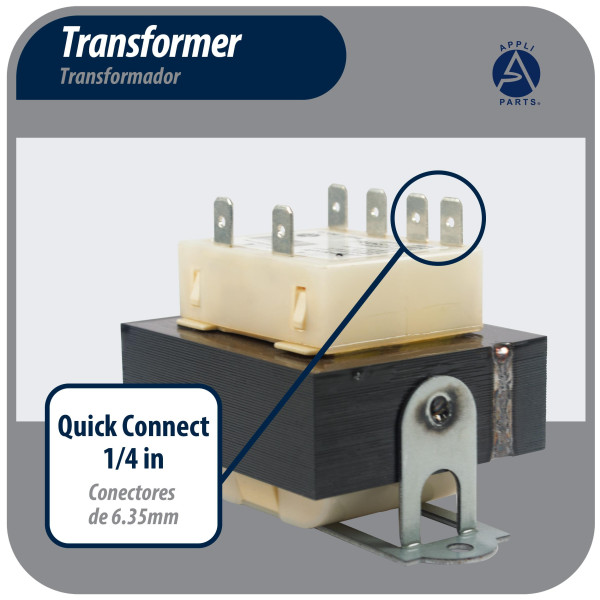

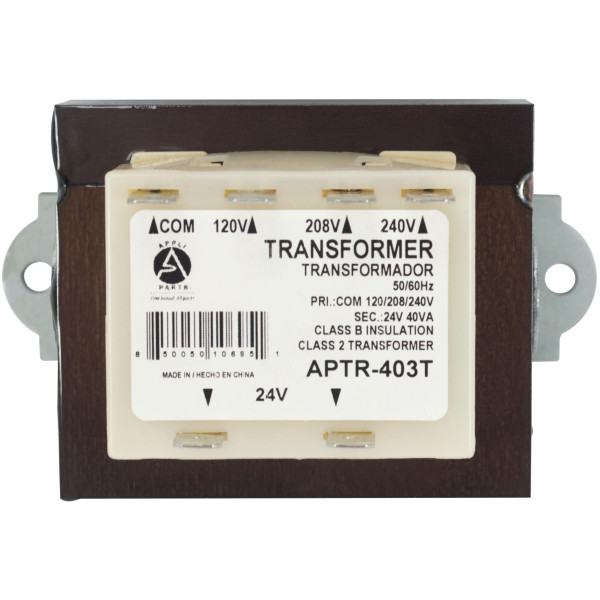

Appli Parts APTR-403T Transformer 120, 208, 240 V to 24 V, 40 Va Foot Mount 1/4 Male Quick Connects, Class B Insulation, Class 2 Transformer

Appli Parts APTR-403T Transformer 120, 208, 240 V to 24 V, 40 Va Foot Mount 1/4 Male Quick Connects, Class B Insulation, Class 2 Transformer
Use: Will Work For Electrical Applications Such As Ac, Thermostats, Furnace

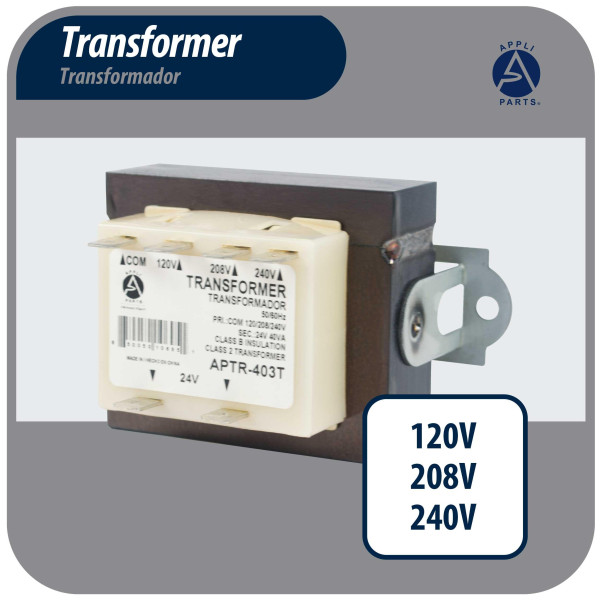

Specs: In Primary Voltage 120, 208, 240 Volts Output Secundary 24 Volts At 40 Va

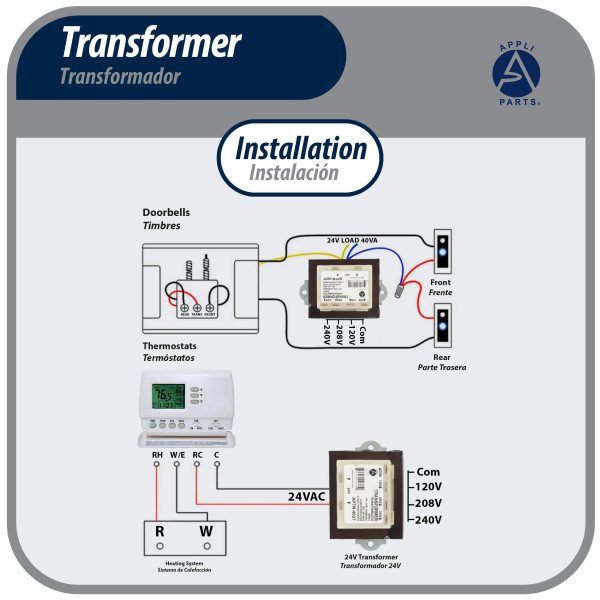

Connection: Primary Common Cable Black, White 120V, Red 208V, Orange 240V. Secundary Blue And Brown

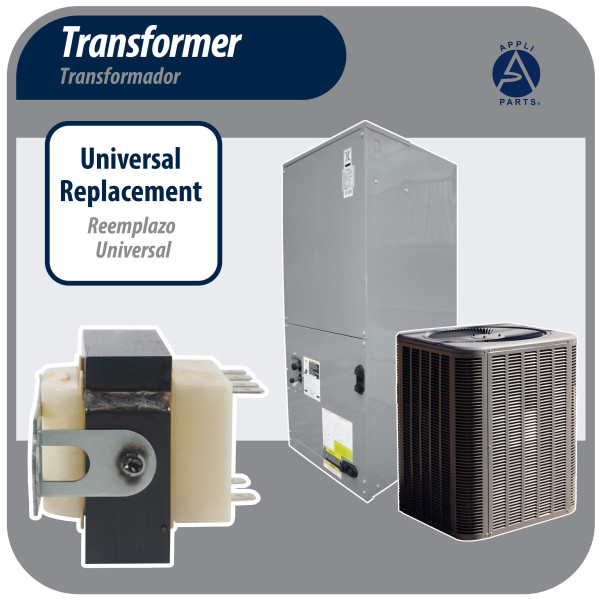

Universal: Will Replace Any Transformer That Meets The Specified Technical Data

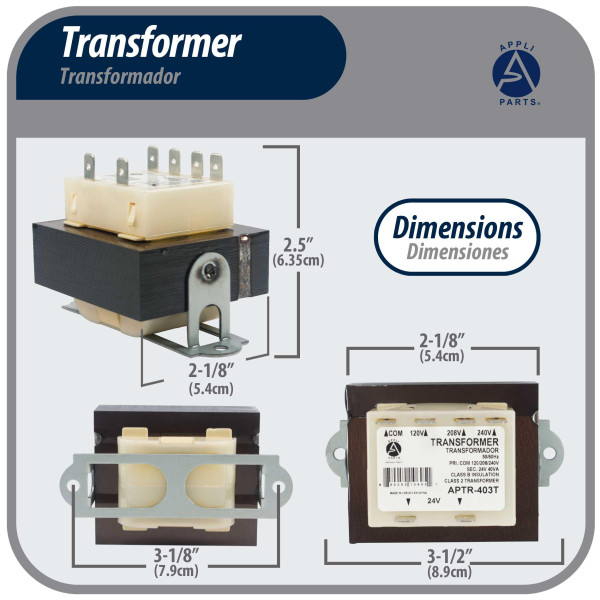

Confirm that the dimensions and other attributes of the product closely match those of the original item being replaced

Weight : 1.2 LBR
Volume : 0.02 FTQ
Model : APTR-403T
UPC-EAN : 850050106951

Reference G2206.403T

Condition New

Data sheet

Product Characteristic: Use: Will Work For Electrical Applications Such As Ac, Thermostats, Furnace
Specs: In Primary Voltage 120, 208, 240 Volts Output Secundary 24 Volts At 40 Va
Connection: Primary Common Cable Black, White 120V, Red 208V, Orange 240V. Secundary Blue And Brown
Universal: Will Replace Any Transformer That Meets The Specified Technical Data
Confirm that the dimensions and other attributes of the product closely match those of the original item being replaced
Model: APTR-403T
UPC-EAN: 850050106951
Sales Unit: EA
Origin: China
US Tariff Code: 8504.31.2000
Base Unit: EA
